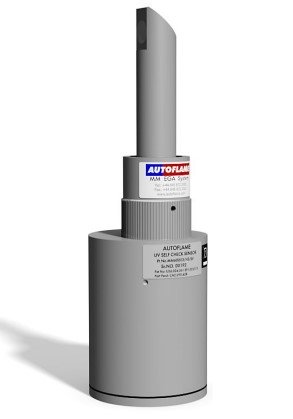

Autoflame Self-Check UV Flame Scanner
Autoflame Ultraviolet (UV) flame scanners work by detecting the UV radiation emitted from the flame.
UV scanners have very quick response and can detect flame in as little as 3 to 4 milliseconds.
UV scanners can be used for most gaseous fuels including Natural Gas, LPG, Methane, Biogas, Hydrogen and many others.
They can also be used on most liquid fuels including Diesel, Kerosene, Heavy Fuel Oil, Light Fuel Oil, Biodiesel, Methanol and many others.
However on some fuels IR scanners are recommended as they can achieve better flame detection results.
Specification :
- IP Rating 54
- NEMA 5
- Power Consumption – Maximum 0.5W
- Housing – Aluminium
- Mounting – Any Orientation
- Maximum operating temperature – 50C / 122F
UV scanners Versions : | Sensivitity Level : | View Part : | Self-check : |
MM60003/HS | High | End View | Yes |
MM60003/HS/SV | High | Side View | Yes |
UV scanners with ATEX : | Sensivitity Level : | View Part : | Self-check : |
MM60003/HS/EXP | High | End View | Yes |
*ATEX approved UV scanners are for use in Hazardous Environment where Explosion Proof, ATEX approved Equipment required.
The use of Autoflame Self-check UV Scanner High Sensitivity :
- MM60003/HS : End View Only, 1″ Connection
- MM60003/HS/SV : Side View Only, 1″ Connection
* For any order enquiries, please consult JATI
